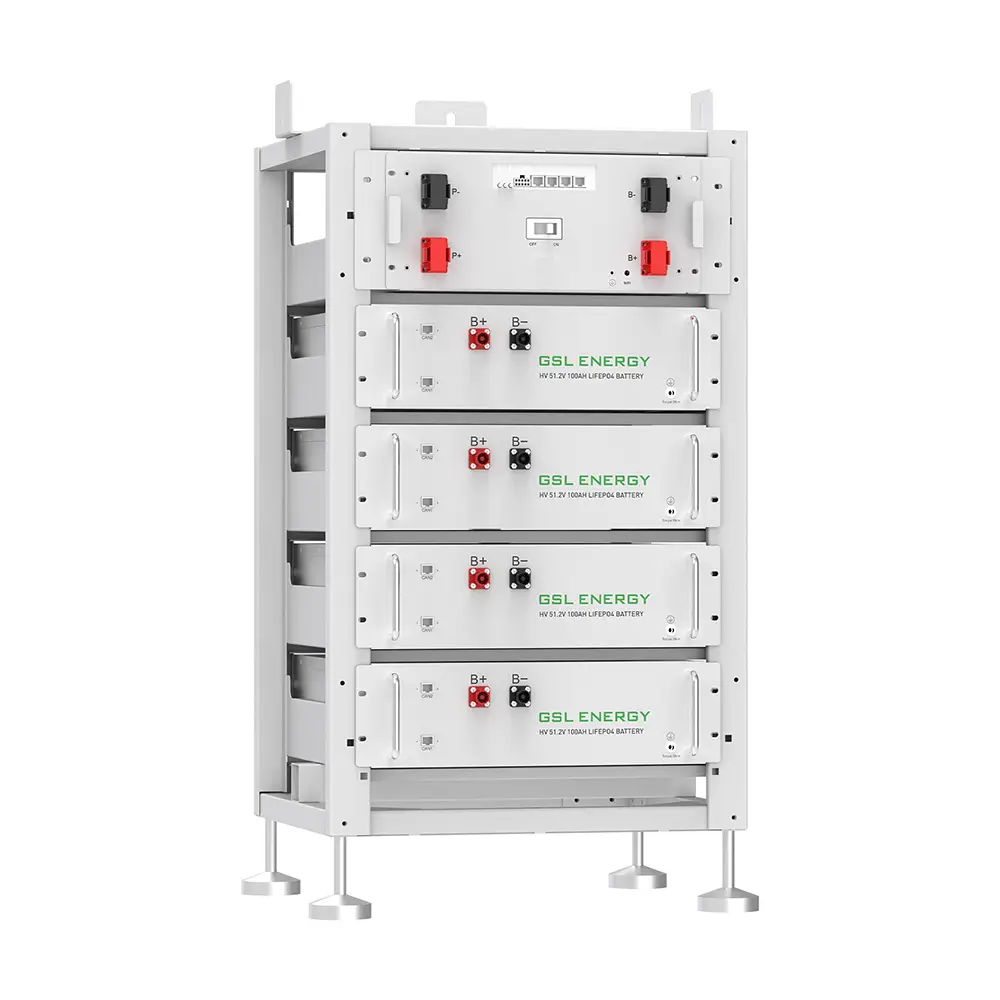

A high voltage (HV) lithium battery system is a series-connected LiFePO4 module stack designed to deliver higher operating voltage—typically 150V–800V depending on the application. Compared to low-voltage systems, HV batteries offer higher inverter efficiency, lower current losses, and greater system scalability, making them ideal for residential, commercial, and industrial ESS.

Higher system efficiency (lower I²R losses);Stronger compatibility with hybrid and three-phase inverters;Smaller cable size and simpler wiring;Better performance for large loads;Easier expansion for C&I projects;HV batteries are often the preferred choice for microgrids, commercial backup systems, and multi-module residential ESS.

Our HV battery platform integrates with most leading global inverter brands, including:Deye / Sunsynk,Sol-Ark,Growatt,Luxpower, SMA,GoodWe,Other CAN/RS485-supported hybrid inverters,We provide communication protocol adaptation for OEM/ODM partners.

GSL high voltage LiFePO4 batteries offer 6500–10000+ cycles depending on the depth of discharge and application scenario. Typical usable lifespan ranges from 10–15 years or more.

Yes. LiFePO4 chemistry is known for its thermal stability and non-flammable characteristics. GSL ENERGY HV systems include:Multi-layer BMS protection,Cell-level balancing,Short-circuit & over-voltage protection,Thermal monitoring,Fire-resistant enclosures (optional),All systems comply with UL 9540, UL 1973, CB IEC62619, CE, UN38.3, and other safety standards.

Yes. GSL’s HV LiFePO4 packs are engineered for global environments, with: Operating temperature: -20°C to 55°C;Intelligent BMS temperature compensation;Optional built-in heaters for cold regions;Anti-UV and anti-corrosion enclosures for coastal or desert sites

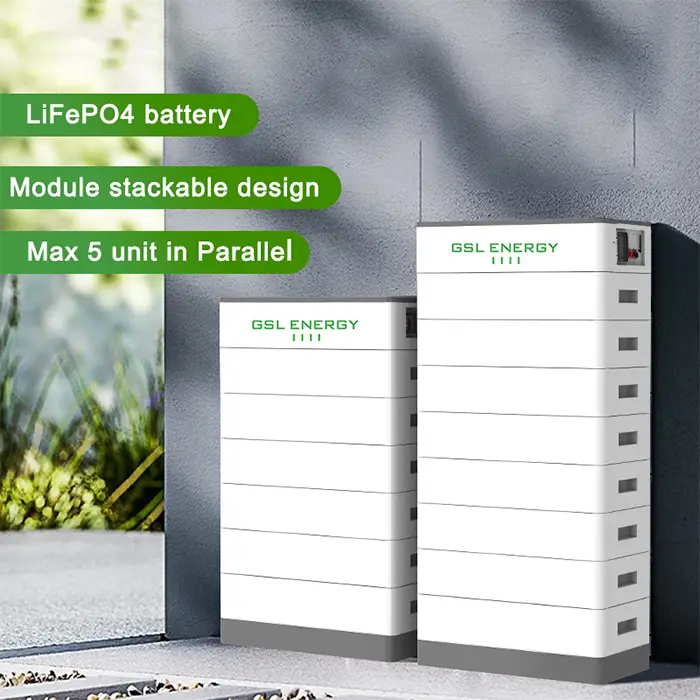

Depending on the model, GSL HV batteries support stackable modules and can scale from:80kWh to 140kWh per rack;Multi-rack integration for MWh-level C&I or utility ESS;Parallel expansion is available for larger systems.
